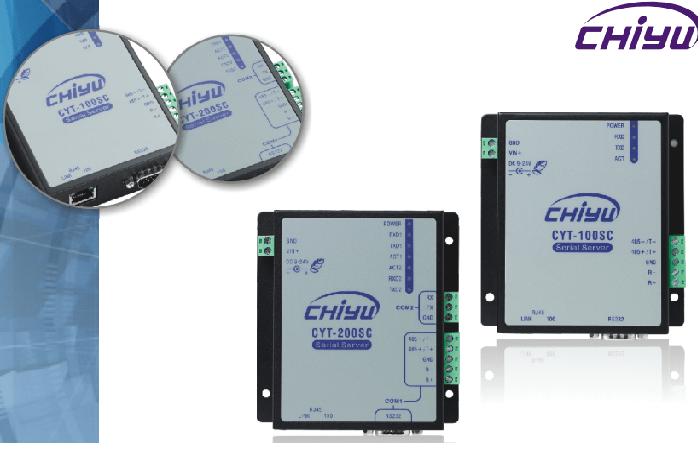

CHIYU CYT-200SC, BỘ CHUYỂN ĐỔI RS485/232 TO TCP/IP

Mô tả sản phẩm
Ethernet 10/ 100Base-T/Tx1, Automatic MSI/ MDI-xport
Communication Port TxD,RxD,RTS,CTS,DTR,DSR,DCD,GND , Baud rate :1200bps ~ 230.4kbps
RS-232 (COM 1) TxD,RxD,RTS,CTS,DTR,DSR,DCD,GND , Baud rate :1200bps ~ 230.4kbps
RS-232 (COM 2) TxD, RxD, GND
RS-485 2 DATA+/-
RS-422 4 R+/R-/T+/T-
CPU 16 Bits, 100MHz
Memory 256K Flash & 2M SDRAM
Watch Dog System halt prevention
LED Indicator 7: Power / RXD / TXD / ACT/ACT2/RXD2/TXD2
Power Requirement DC 9V ~ 24V
Power Consumption 500mA(9V)
EMI/ EMC Certification FCC B, CE B
System Requirement Operation Temperature: 0ºC~ 55ºC
Storage Temperature: -20ºC~ 75ºC
Operation Humidity: 5%~ 80%RH
Surge Protection Serial port 15 KV ESD
Magnetic protected Ethernet port 1.5 KV
Connector Type DB9 (Male)/ RJ-45/ 2 RS-485/ 4 RS-422
Reset Button Yes
Dimension 106.5 (Include ear loop) x 115 x 28 mm
Weight CYT-200SC*320 g.
Thông số kỹ thuật
Danh mục Tên thông số Giá trị
