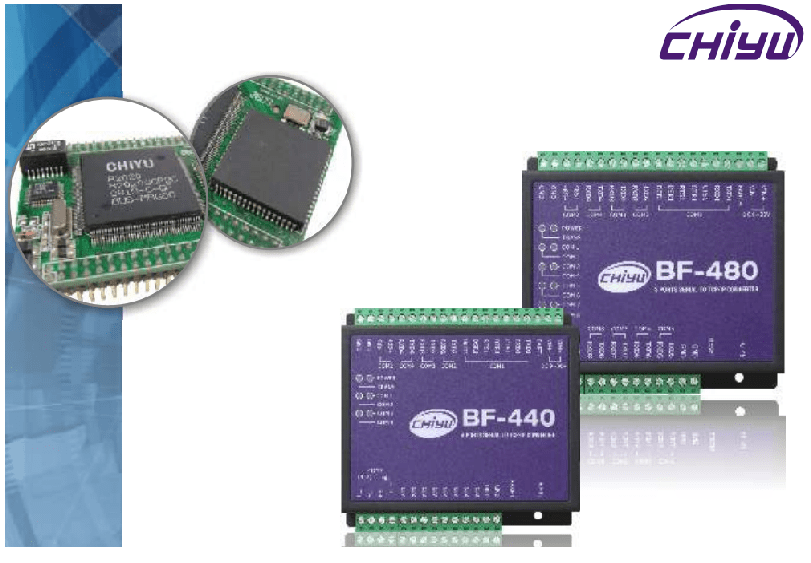

CHIYU BF-440, BỘ CHUYỂN ĐỔI RS485/422/232 TO TCP/IP 4 PORT

Mô tả sản phẩm
Hardware
CPU 16 bit CPU, 100MHz
Memory 256K ROM & 768K SDRAM
Watch Dog system never halt
Power DC 9-30V , 500mA
Operation Temperature 0℃ ~ 55℃
Operation Humidity 5% ~ 80%RH
Storage Temperature -20℃ ~ 75℃
Magnetic Protected Ethernet port 1.5 KV
Reset Button Yes
Dimension 115 x 105 x 34 mm
Weight 410 g.
Interface
Ethernet 10/100Base-T,half/full duplex, Auto Cross Over, 1.5 KV Magnetic protected
Serial Port (BF-440：COM1~ COM4 ; BF-480：COM1~COM8)
Port
Interface
Port Type
signals
protection
COM1
RS-232
Screw
Terminal
TxD,RxD,RTC,CTS,DTR,DSR,DCD,GND
15KV ESD
COM2
RS-232/485
TxD,RxD,GND(RS-232)
D+, D-(RS-485)
COM3
RS-232/485/422
TxD,RxD,GND(RS-232)
D+, D-(RS-485) T+, T-, R+, R-(RS-422)
COM4
RS-232
TxD, RxD, GND
COM5
TxD, RxD, GND
COM6
TxD, RxD, GND
COM7
TxD, RxD, GND
COM8
TxD, RxD, GND
Baud Rate 1200 bps ~230.4Kbps
Setting
Ethernet Static IP/DHCP Client/PPPoE
Serial Parity Check：None, even, odd, Mark , Space
Data bits：5, 6, 7, 8
Stop bits：1, 2
Flow Control：RTS/CTS, XON/XOFF
Support OS
Windows XP, Windows 2000, Windows NT, Windows95/98 ME, Linux, UNIX
Protocol
TCP, IP, UDP, Telnet, ARP, DHCP, ICMP、SMTP、PPPoE、HTTP、DDNS
Operation Mode
›   Support TCP/UDP Server/Client mode.
›   User name; password protected for web management
›   Built-in Http server for set up and remote management via any browser easily
›   Support backup; restore system configuration data
›   Support Windows 95/98/ME/NT/2000/XP/2003 virtual COM drivers
