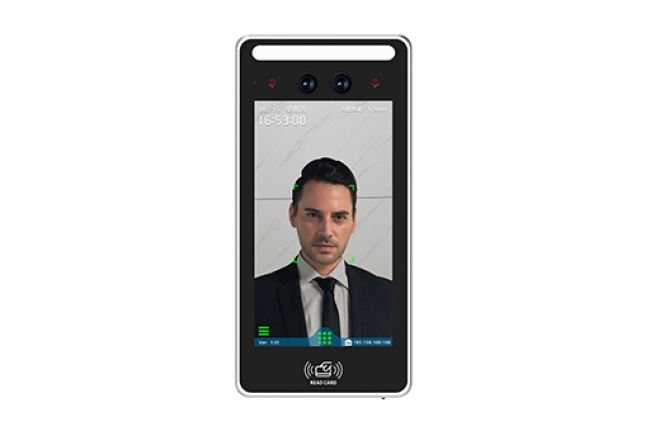

FC-8910

THÔNG SỐ KỸ THUẬT

• Main Uses: Access Control, Time Attendance, Video Intercom, Elevator Control, Cabinet Lock

• Working Voltage: DC12V（9 ~ 14V）

• Working Current: <2000mA

• Working Environment: Temperature: -30℃～65℃; Humidity: 10 ~ 90%, RH

• Operating System: LINUX System

• User Capacity: 20,000 Faces; 20,000 QR Codes; 20,000 Cards; 20,000 Passwords; 10,000 Palms

• Record Capacity: 1 Million Records; 10,000 Recording Photos; 10,000 System Records

• Recognition Distance: 0.3m-3m

• Recognition Speed: < 0.3S

• Material: Metal Housing+Tempered Glass Panel

• Size: 180×87×23mm

• Weight: 0.8KG

• Elevator Expansion: Support for Elevator and Cabinet Lock

• Algorithm: Face Recognition, Palm Vein Recognition, QR Code Verification

• Management Mode: Touch Screen, Desktop Software, Cloud Software, Mobile App

• Registration Methods: Face, Palm Vein, Password, Mifare Card, Dual Frequency Card Optional (ID Card and Mifare Card)

• Comparison Mode: 1:N/1:1

• Firmware Upgrade: Software OTA Upgrade or USB Flash Drive Upgrade

• Camera: Wide Dynamic Binocular 2 Megapixel HD Camera

• Display Screen: 5-inch ISP Full-view HD Screen

• Storage: 256M DDR3 Memory, 8GB EMMC Storage

• Communication: TCP/IP, WIFI, 4G(Customized), Wiegand26/34/66

• Other Interfaces: Exit Button x1, Door Sensor x1, Fire Input x1, Alarm Output x1, Wiegand Output x1, Wiegand Input x1, Magnetic Lock Control x1, USB x1, RS485 x1

• Installation Ways: Wall Mounted or Installed on the Turnstile
