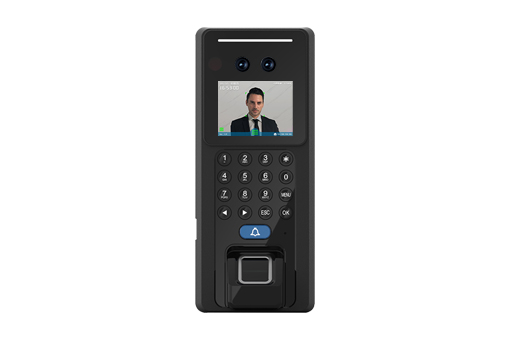

FC-8224

THÔNG SỐ KỸ THUẬT

• Main Uses: Access Control, Time Attendance

• Working Voltage: DC12V（9 ~ 14V）

• Working Current: <1000mA

• Working Environment: Temperature: -30℃～65℃；Humidity: 10 ~ 90%, RH

• Operating System: LINUX System

• User Capacity: 5,000 Faces; 5,000 QR Codes; 5,000 Cards;5,000 Passwords; 5,000 Fingerprints; 5,000 Palms

• Record Capacity: 200,000 Records; 10,000 Recording Photos; 10,000 System Records

• Recognition Distance: 0.3m-2m

• Recognition Speed: < 0.3S

• Material: ABS Plastic Housing+Tempered Glass Panel

• Size: 168×77×21mm

• Weight: 0.6KG

• Algorithm: Face Recognition, Fingerprint Identification, Palm Vein Recognition, QR Code Verification

• Management Mode: Touch Screen, Desktop Software, Cloud Software, Mobile App

• Registration Methods: Face, Fingerprints, Palm Vein, Password, Mifare Card

• Comparison Mode: 1:N/1:1

• Firmware Upgrade: Software OTA Upgrade

• Camera: Wide Dynamic Binocular 2 Megapixel HD Camera

• Display Screen: 2.4-inch ISP Full-view HD Screen

• Storage: 256M DDR3 Memory, 8GB EMMC Storage

• Communication: TCP/IP, WIFI, 4G(Customized), Wiegand26/34/66

• Other Interfaces: Exit Button x1, Door Sensor x1, Alarm Output x1, Wiegand Output x1, Magnetic Lock Control x1

• Installation Ways: Wall Mounted or Installed on the Turnstile
